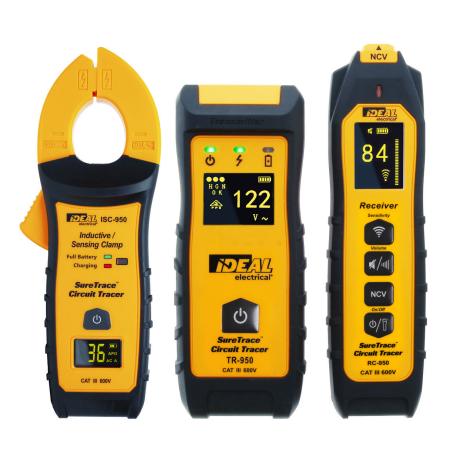

SureTrace™ Pro Circuit Tracer 0-600 AC/DC

The SureTrace™ Pro Circuit Tracer is the most accurate electrical troubleshooting solution for all energised and de-energised electrical systems, including 3-Phase. This powerful tool effortlessly traces and locates breakers, fuses, and conductors hidden in walls, ceilings, and floors, while pinpointing wiring faults like dead shorts, opens, and splice errors. Leave your second tester behind and perform troubleshooting tasks easily using the transmitter’s patent-pending auto continuity tester, voltage measurement (24 to 600V AC and 12 to 600V DC), DC polarity, and receptacle testing features. Measure amperage (0 to 600A AC) with the patent-pending Inductive Sensing Clamp and/or use the clamp to induce a tracing signal on conductors when access to termination points is not possible. Easily trace circuits and locate breakers in all positions and low-light conditions using the integrated work light and the receiver's dual high-visibility displays — a patented 90° rotating TightSight® secondary display and 90° rotating main display. Work with accuracy and efficiency using advanced CertainCircuit™ technology that alerts you when the circuit is energised or de-energised at the panel and the other end of the circuit. With a CAT III 600V rating, the SureTrace Pro Circuit Tracer is the ultimate circuit troubleshooting tool for electrical professionals.

• RELIABLE TRACING: Detect breakers, conductors, fuses, dead shorts, and splice errors in all electrical systems up to 600V AC/DC, including 3-phase, with speed and accuracy using this ETL Certified CAT III circuit tracer
• TOTAL TROUBLESHOOTING SOLUTION: Check continuity, measure voltage (24 - 600V AC and 12- 600V DC), confirm DC polarity, and verify outlet wiring with the featured-packed transmitter
• AC AMPERAGE MEASUREMENT: Induce tracing signals and measure AC amperage up to 600A using the patent-pending, rechargeable inductive/sensing clamp with TightSight bottom display
• LIGHTEN YOUR TOOLBELT: Quickly find shorted conductors, check receptacle wiring, detect the presence of AC voltage, and read AC Amperage — no second tester needed
• PREMIUM ROTATING DISPLAYS: Easily view readings in tight spaces and at tough angles thanks to the receiver’s two high-visibility 90° rotating OLED displays, including a TightSight bottom display
• USER-FRIENDLY FEATURES: Analogue and digital signal strength, sensitivity level, battery level, built-in NCVT, work light, kick-stand, hanging strap clip, and mute button to silence audible indications when working in noise-sensitive areas
• ONE-PERSON TRACING: CertainCircuit technology turns tracing into a one-person job by visibly indicating when the correct circuit has been deenergised at the panel and at the other end of the circuit
• DURABLE DESIGN: Overmoulded industrial design withstands the toughest jobsite conditions, enhancing grip and providing drop protection up to 6.6 feet (2 m)
• PACKAGE INCLUDES: SureTrace Pro transmitter and receiver; SureTrace Inductive/Sensing Clamp; Lead Set; USB A-USB C Charging Cable, moulded hard case, instruction manual, and 10 AA batteries
