SPLICELINE IN-LINE CONNECTOR, 100 BOX 30-1042

• 32A
• Faster alternative to traditional butt splices
• Tool-free, push-in through crimp
• Slim design fits through standard knockouts
• Perfect for lengthening wire
• Transparent polycarbonate window for visual inspection of connection
• Wide wire range of: 0.5mm2 to 4.0mm2 solid
• BS 7671:2008 (18th Edition) compliant
• Conform to EN 60998-1 and EN 60998-2-2 connecting device standards
• Can be used with the In-Sure® Box (30-4000) for a Maintenance Free installation

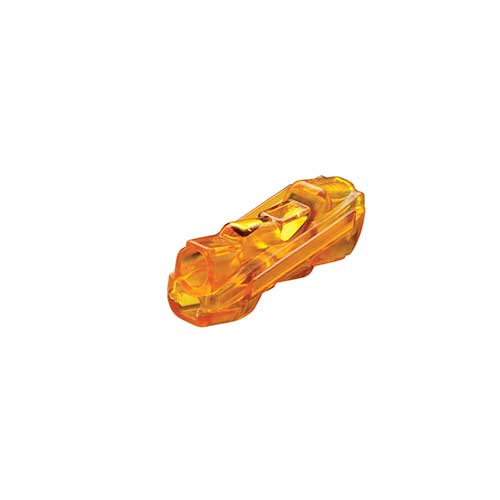

The SpliceLine® in-line wire connector provides a crimp-free, solderless butt Splice.

Conforming to BS7671:2008, the two-port model accepts up to 4.0 mm2 solid wire allowing one connector to do the job of multiple through-crimps.

Its end-to-end connection is also a great solution for pre-fab operations.
