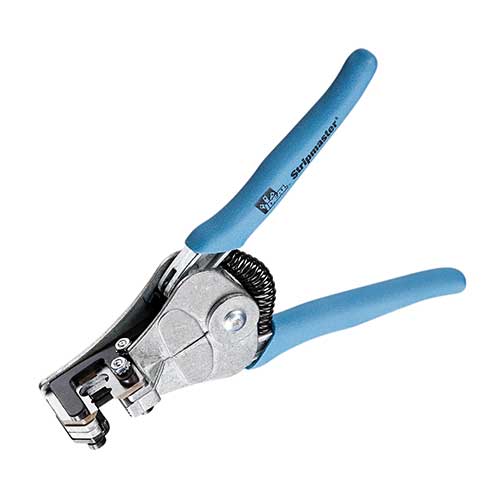

COAX STRIPMASTER, RG59 45-265

• RG-59 blade set plus Stripmaster® frame
• User defined strip lengths – great for niche/legacy RF connectors.
• Knife type blade designed for use on RG-59 only
• No field adjustments required
• Heavy duty zinc die cast body frame
• Frame is compatible with other standard Stripmaster knife-type blades
• Replacement blades are available (LB-743)

Coax Stripmaster® for RG-59 coax cables. Each tool includes the standard Stripmaster® tool frame and knife type blades for 2-step stripping of RG-59 coaxial cables. The Stripmaster tool allows the user to strip one level at a time, and the user can determine the proper strip length between levels. This tool is still widely used for non-traditional, non ¼” x ¼” strip preparation applications

To use, center the cable over the smaller hole, squeeze handles quickly, and cut the cable to expose the center conductor. Then center the tool over the larger hole and remove the required jacket amount to expose the shield layer of the coax cable. The shield layer can also be hand trimmed as needed for multi-piece crimp BNC, N, and other RF connector types.
